SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD

                                                   Bicycle Testing Machine Product Introduction

Model No.：CH-70-13

Bicycle Testing Machine Description：

1.Bicycle Testing Machine is used for imitating vertical force impact testing to Frame(including front fork).it's suitable for doing fatigue strength testing to frame of bicycle /ele-bicycle;

2. Bicycle Testing Machine is efficient, stable and easy for adjusting and changing molds.

3. Adopting motor to drive eccentric mechanism to imitate impact to front fork, Air cylinder to achieve the buffer to impact Counting system controls vibration times; The frequency and amplitude of vibration and distance of wheels can be adjustable.

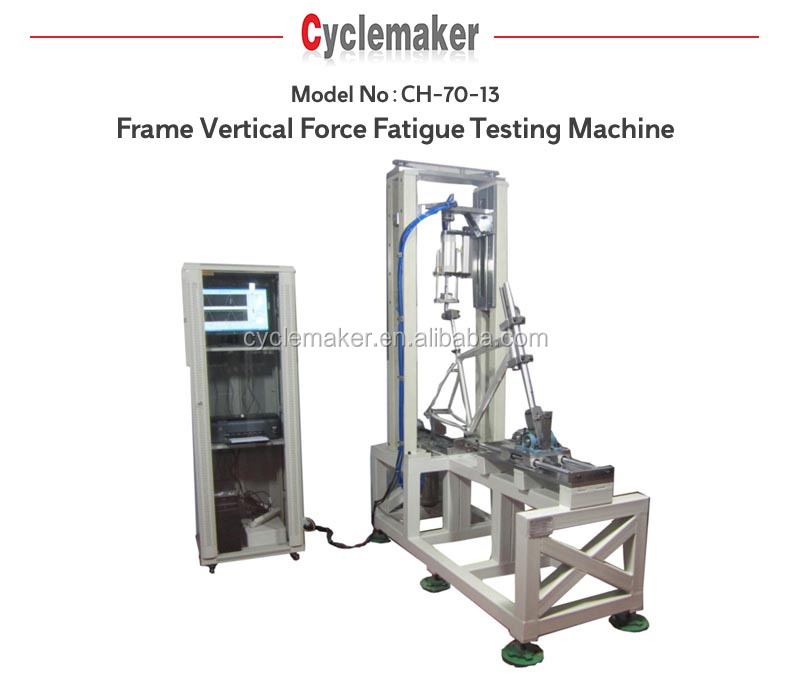

Frame Vertical Force Fatigue Testing Machine

Function

Vibration  Frame Testing

Application

Frame of bicyle/ele-bicycle

Distance between front&rear wheel

620~1460 mmFrame Vertical Force Fatigue  Frame Testing Machine

Vibration frequency

Max. 3 Hz

Vibration amplitude

0~25 mm

Operation mode

Semi-auto

Power

1.5 KW

Voltage

2P 220V 50Hz

Control method

Relay

Start method

Press button

Air system pressure

0.2~0.6 MPa

Color

Green

Size

2100×800×1650 mm

Weight

500 KG
