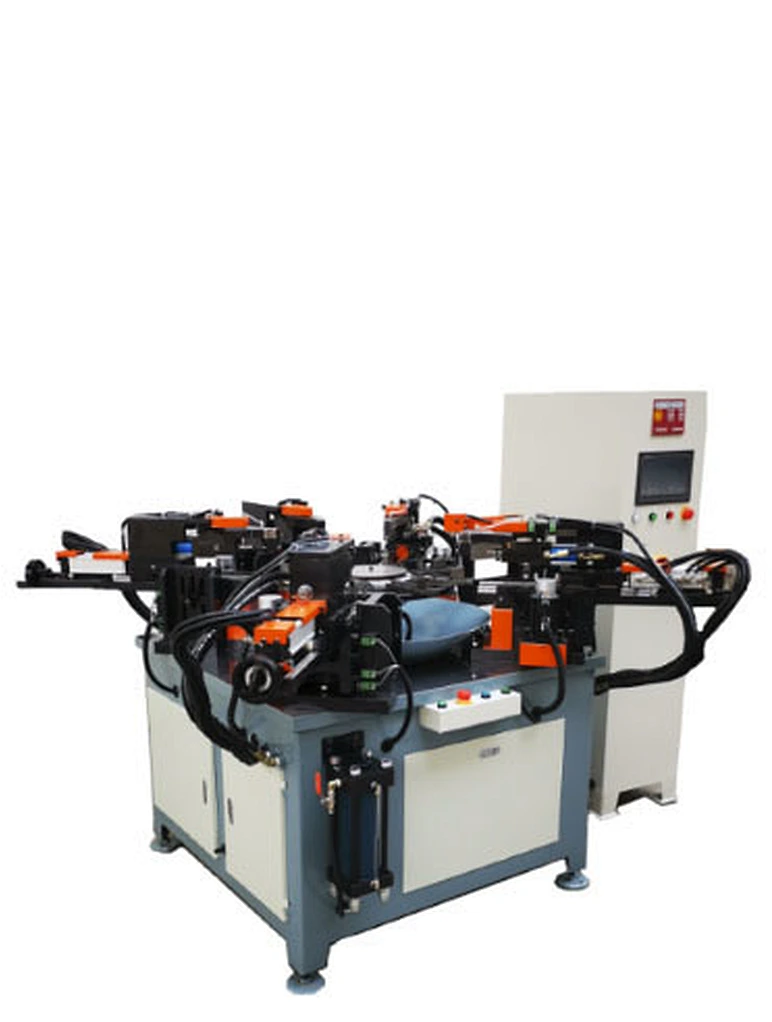

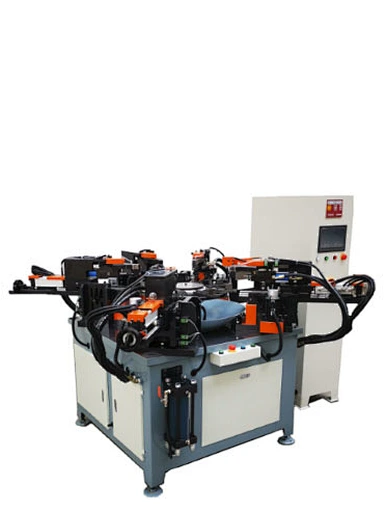

Semi-Automatic 5 Heads Single Wall Alloy Rim Holes Punching Machine
CH-80-05S
Shenzhen Sea Port of China
Quantity
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Bicycle Rim Machine Production Introduction | ||||||||||
Name of Machine:Semi-Automatic 5 Heads Single Wall Alloy Rim Holes Punching Machine | Model No.: CH-80-05S | |||||||||
Bicycle Rim Machine Description： | ||||||||||
1. This kind of Bicycle Rim Machine is used for punching spoke holes and valve hole on single wall Alloy Rim. | ||||||||||
2. This Alloy Rim Holes Punching Machine is efficient, stable and easy on adjustment and changing molds of bicycle machine. | ||||||||||
3. Operator just need to load the rim on to machine clamp table. Then the Bicycle Rim Machine shall find the pin joint seam and completed the holes punching according to setting data on its PLC system. | ||||||||||
4. For the same design Alloy Rim, it takes 3 minutes to adjust different size. For different design of Alloy Rim, it takes 10~15minutes to ajust machine to produce different Alloy Rim | ||||||||||
5. This Bicycle Rim Machine can remember 40 types of production models of bicycle rim. Operator can number each model on machine. Then for the next time production, the operator can recall the data from system, then this Bicycle Rim Machine will complete adjustment automatically. | ||||||||||
6. Bicycle Rim Machine Mold can be customized. | ||||||||||
| Bicycle Rim Machine | Semi-Automatic 5 Heads Single Wall Alloy Rim Holes Punching Machine | |||||||||
Function | Punching holes on Alloy Rim | |||||||||
Application | Single wall Alloy Rim | |||||||||
Rim dia. | 16"~700C （265~630mm) | |||||||||
Rim width | 20mm~35mm | |||||||||
Upper&down holes | The distance between upper&down holes Max.20 mm | |||||||||
Holes number | 16~68 (total : 9type) | |||||||||
Capacity | 800-1440PCS/8HRS of Alloy Rim | |||||||||
Operation mode | Semi-auto (Manual loading and unloading) | |||||||||
Power | 5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC + Touch screen | |||||||||
Start method | Press button | |||||||||
Hydraulic pressure of working | 3 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Compressed air system pressure | 0.4~0.6 MPa | |||||||||
Precision: | Zigzag tolerance: ±0.3mm; left-right holes tolerance: ＜1mm | |||||||||
Precision of rim joint location | ±2.5mm | |||||||||
Color | Green | |||||||||
Size | 1900×1700×1300 mm | |||||||||
Weight | 1500 KG |  | ||||||||
| Bicycle Rim Machine | Semi-automatic 5 Heads Single Wall Alloy Rim Holes Punching Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
