front fork cup and star nut Inserting machine for complete bicycle
CH-40-01C
1 set
Shenzhen Sea Port of China
Quantity
- bicycle inserting machine is used for pressing front fork cup , and inserting star nut into stem tube.
- Place of Origin:China
- Function:Pressing front fork cup and star nut Inserting
- Application:Many kinds of front fork for complete bicycle
- Capacity:200~300PCS/HR
- Operation mode:Semi-auto
- Power:2.2 KW
- Voltage:3P 380V 50Hz
- Control method:Relay
- Start method:Position switch & sensor switch
- Weight:300 KG
- Color:Green
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

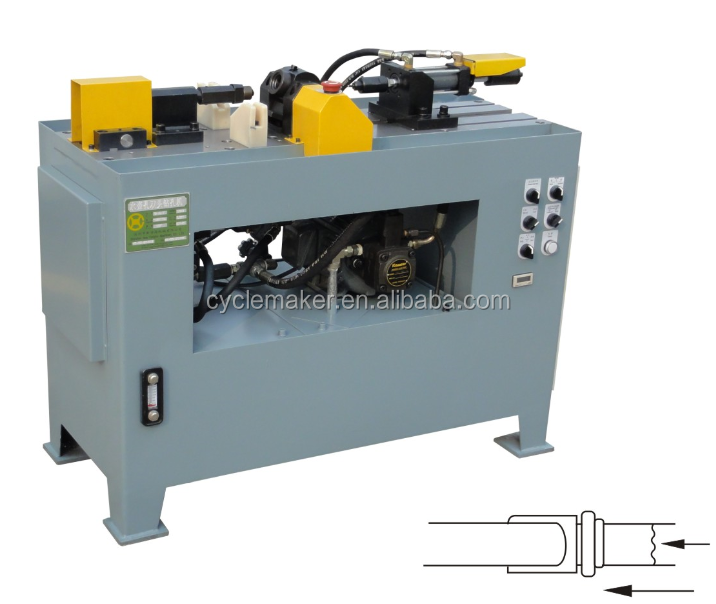

| front fork cup and star nut Inserting machine | Model No.：CH-40-01C | |||||||||
Description： | ||||||||||
1. front fork cup and star nut Inserting machine is used for pressing front fork cup into front fork stem , and inserting star nut into stem tube.it is for complete bicycle. | ||||||||||
2. front fork cup and star nut Inserting machine is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting cylinder to drive press mechanism forward/backward. Processing action was controlled by position switch or sensor switch and timely relay; | ||||||||||
4. This bicycle machine mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | front fork cup and star nut Inserting | |||||||||
Application | Many kinds of front fork for complete bicycle | |||||||||
Stem length | 140~320 mm | |||||||||
Capacity | 200~300 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 2.2 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Position switch & sensor switch | |||||||||
Hydraulic working pressure | 5 MPa | |||||||||
Max.system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1300×550×900 mm | |||||||||
Weight | 300 KG | |||||||||
Products Description
Product Code | CH-40-01C Front Fork Cup & Star Nut Inserting Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
